Model
|

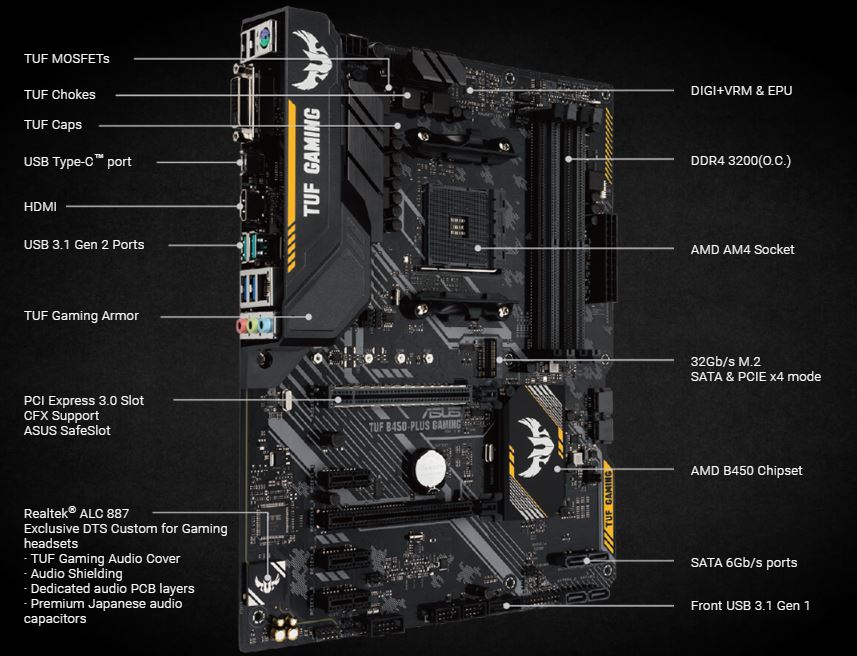

TUF B450-PLUS GAMING
|
|
PN
|
90MB0YM0-M0EAY0
|
|
EAN
|
4718017075947
|
|
İşlemci
|
AMD AM4 Soket 3./2./1. Nesil AMD Ryzen™ 3./2./1. Nesil AMD Ryzen™ ile Radeon™ Vega Grafikler/Athlon™ ile Radeon™ Vega Grafik İşlemciler
*Desteklenen CPU listesi için www.asus.com.tr ziyaret ediniz.
|
|
Yonga Seti
|
AMD B450
|
|
Bellek
|
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 4400/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
|
|
Grafik
|
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
|
|
Çoklu GPU Desteği
|
AMD CrossFireX™ Teknolojisini Destekler
|
|
Genişleme Yuvaları
|
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1
|
|
Depolama
|
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
2 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AMD B450 chipset :
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
|
|
LAN
|
Realtek® RTL8111H
TUF LANGuard
|
|
Ses
|
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
|
|
USB Portları
|
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
AMD B450 chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
|
|
ASUS´a Özel Özellikler
|
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Precision control for stable power
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
|
|
Arka Giriş/Çıkış Portları
|
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
|
|
Dahili Giriş/Çıkış Portları
|
1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
|
|
Aksesuarlar
|
User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
|
|
BIOS
|
128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
|
|
Yönetilebilirlik
|
WOL by PME, PXE
|
|
İşletim Sistemi
|
Windows® 10 64-bit
Windows® 7 64-bit *3
|
|
Form Faktörü
|
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|
|
Not
|
*1 The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*3 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors.
|
