TUF OYUN İTTİFAKI
|
|
TUF Gaming Alliance; ASUS ile Antec®, Apacer®, Ballistix, Cooler Master®, Corsair®, Deepcool, Enermax, G.Skill, GeIL®, In Win, Scythe, SilverStone, Team Group ve XPG gibi önde gelen güvenilir PC bileşen markaları arasında yapılan bir iş birliğidir. Bilgisayar kasalarından güç kaynaklarına, CPU soğutucularından DRAM'e kadar sürekli genişleyen uyumlu bileşen yelpazesi hem uyumu hem de estetik ahengi garanti ediyor. İş birliklerimizi artırarak TUF Gaming Alliance'ı daha da güçlendirmeye devam ediyoruz.
|
|
TUF KORUMA
SAFESLOT
Ekran kartı yatırımınızı koruyun
|
|
PCIe yuvasının ASUS tarafından yeniden icat edilmiş hali olan SafeSlot kartın yerinden çıkmasını ve kaymasını üstün bir şekilde önler. Güçlendirici metalle entegre ederek, çok daha sağlam bir slot elde etmek için yeni bir geçmeli kalıp süreci ile tek adımda üretilen SafeSlot, ek lehim noktaları ile PCB'ye sıkı bir biçimde tutturulur.
|
|

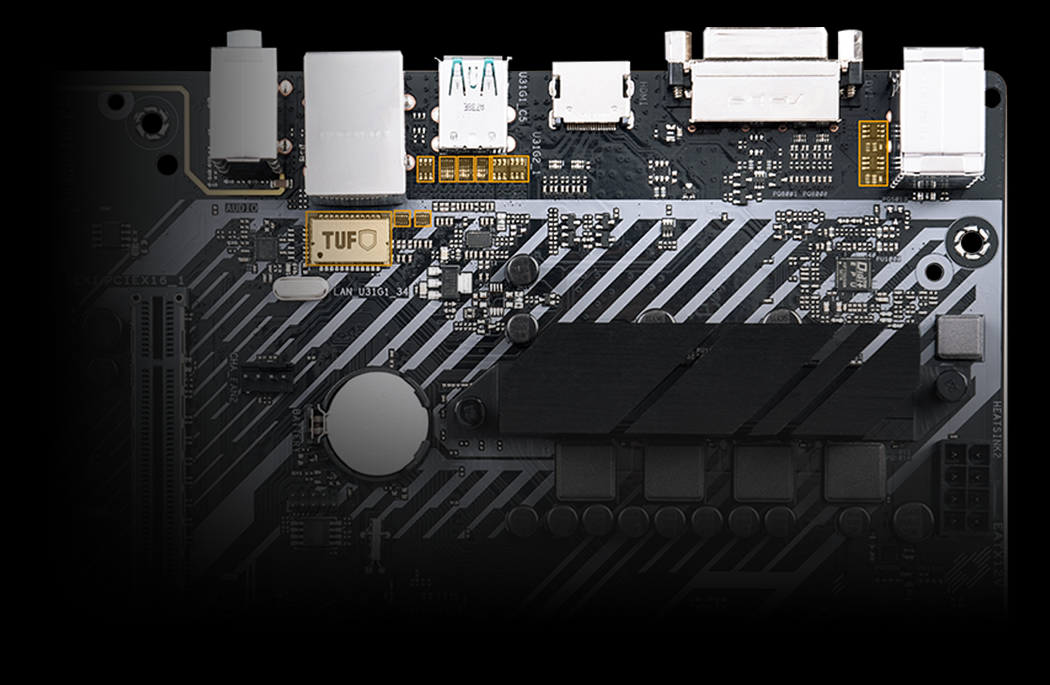

ESD KORUMALARI
Elektrostatik deşarj koruması
|
|
ESD Koruyucuları, +/- 10kV hava deşarjı ve +/- 6kV temas deşarjına kadar koruma sağlayarak bileşenlerin ömrünü uzatır.
|
|
|

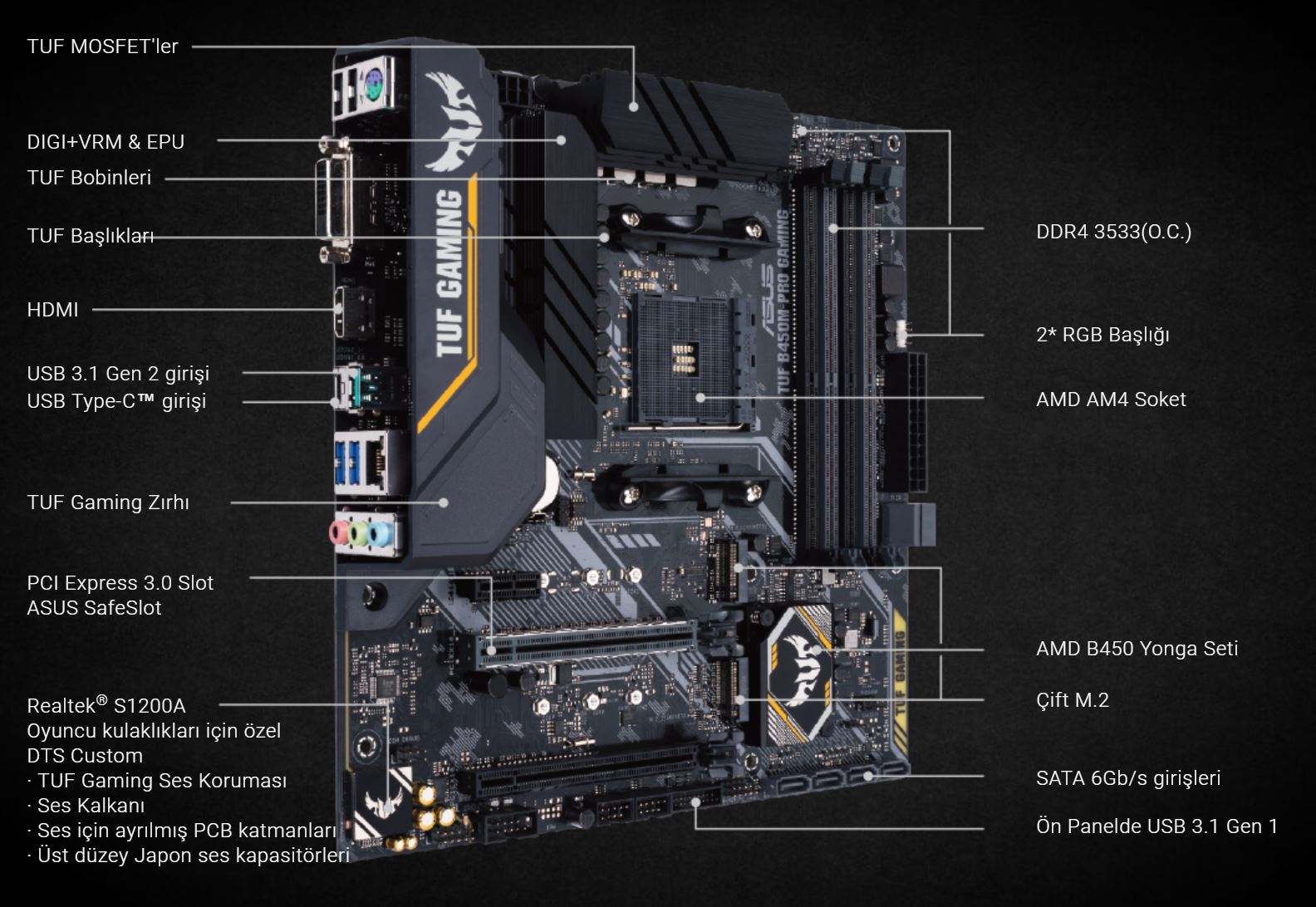

Model
|
TUF B450M-PRO GAMING
|
|
PN
|
90MB10A0-M0EAY0
|
|
EAN
|
4718017165785
|
|
İşlemci
|
AMD AM4 Soket 3./2./1. Nesil AMD Ryzen™ 3./2./1. Nesil AMD Ryzen™ ile Radeon™ Vega Grafikler/Athlon™ ile Radeon™ Vega Grafik İşlemciler
*Desteklenen CPU listesi için www.asus.com.tr ziyaret ediniz.
|
|
Yonga Seti
|
AMD B450
|
|
Bellek
|
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 4400/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
|
|
Grafik
|
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
|
|
Çoklu GPU Desteği
|
AMD CrossFireX™ Teknolojisini Destekler
|
|
Genişleme Yuvaları
|
AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
1 x PCIe 2.0 x1
|
|
Depolama
|
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1
AMD Athlon™ with Radeon™ Vega Graphics Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*1
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
2 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
AMD B450 chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*2
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
|
|
LAN
|
Realtek® RTL8111H
TUF LANGuard
|
|
Ses
|
Realtek® ALC S1200A 8-Channel High Definition Audio CODEC *3
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
|
|
USB Portları
|
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM)
AMD B450 chipset :

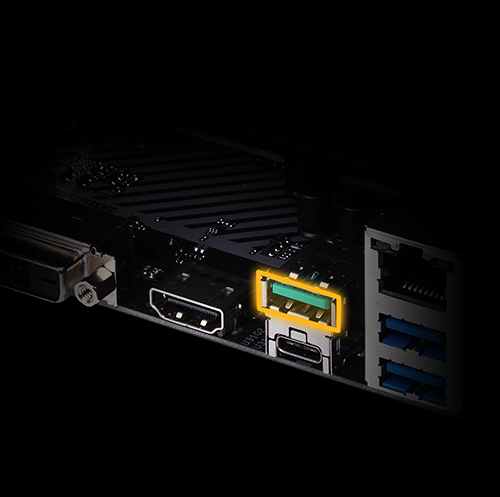

1 x USB 3.1 Gen 2 port(s) (1 at back panel, )
AMD B450 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
|
|
ASUS´a Özel Özellikler
|
ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
|
|
Arka Giriş/Çıkış Portları
|
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 Type-A,
1 x USB 3.1 Gen 1 USB Type-CTM
2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)
|
|
Dahili Giriş/Çıkış Portları
|
2 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x Speaker connector
|
|
Aksesuarlar
|
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
|
|
BIOS
|
128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite,Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
|
|
Yönetilebilirlik
|
WOL by PME, PXE
|
|
İşletim Sistemi
|
Windows® 10 64-bit
Windows® 7 64-bit *4
|
|
Form Faktörü
|
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
|
|
Not
|
*1 The M.2_1 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
*2 The M.2_2 Socket shares bandwidth with the SATA_3/4 ports, and therefore the SATA_3/4 ports cannot be used when an M.2 device is installed.
*3 Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*4 To Support Windows 7 64-bit, It need to install an AMD Ryzen™ 2nd Generatione & Ryzen™ 1st Generation Processors.
|
